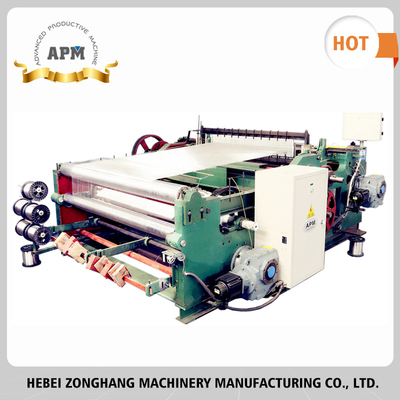

1.The concept of the machine is designed to deal flexibly with the corresponding demands of our
customer.A modular concept allows for weaving widths of between 1300mm and 2000mm,depending
on the machine type.
2.Depending on your range of products,We offers you various APM weaving machines and periphral devices.
3.We have four types machines, APM-SM-1300/1600B;APM-SM-1300/1600QD;APM-SM-1300/1600Q
APM-SM-2000D.as followes:
Model:APM-SM-1300/1600B For fine nets: industrial nets,protection nets with wire diameters of 0.025-0.300mm and mesh of 40-400,at weaving widths of 1300-1600mm. Weave type: plain
|
Model:APM-SM-1300/1600QD For medium heavy nets: oil filters,AC filters,reinforcing nets,airbag nets with wire diameters of 0.14-0.30mm and mesh of 16-80,at weaving widths of 1300-1600mm. Weave type: plain,twill,dutch,twilled dutch |
Model:APM-SM-1300/1600Q For medium heavy nets: oil filters,AC filters,reinforcing nets,airbag nets with wire diameters of <0.60mm and mesh of <40,at weaving widths of 1300-1600mm. Weave type: plain,twill |
Model:APM-SM-1300/1600D For heavy nets: transport belts,security screen,heavy industrial nets with wire diameters of <0.80mm or 0.8-1.6mm and mesh of 4-40,at weaving widths of 1300-2000mm. Weave type: plain,twill
|
Model:APM-SM-1300/1600B For fine nets: industrial nets,protection nets with wire diameters of 0.025-0.300mm and mesh of 40-400,at weaving widths of 1300-1600mm. Weave type: plain |
Machine Parameter
Item | Weaving Width (mm) | Wire Diameter (mm) | Mesh Size (mm) | Power (v) | Weaving Speed (T/Min) | Weave Type | Weight (KG) | Outsize (mm) |
1300B | 1300 | 0.025-0.3 | 40-400 | 380V 2.2KW | 75-78 | Plain and Twill | 3000 | 2600x2800x1200 |
1300D | 1300 | 0.1-0.4 | 20-80 | 380V 4KW | 53 | Plain and Twill | 3400 | 2569x3535x1849 |
1300Q | 1300 | 0.1-0.6 | 10-40 | 380V 2.2KW | 53 | Plain | 3500 | 2569x3535x1849 |
1300QD | 1600 | 0.8-1.6 | 4-40 | 380V 5.5-7.5KW | 53 | Plain | 9000 | 2600x2800x1200 |
The nets are produced by our machines.
Our advantages:
1.The advantages of the machine result from the wide application range for the processing of a great
variety of materials. From iron,copper,bronze,brass,stainless steel,aluminum to platinum.they can all be
woven on these machiens.
2.The optimum cnfiguration of the weaving machine
whichever nets you want to produce,dutch wire net,plain wire net,twill wire net,plain dutch wire net,
twill dutch wire mesh or reverse plain dutch wire mesh,We configures the optimum machine for your
demands.
3.If you are in India, you will be luckly.we have a shop in New Dehle,there are shuttleless looms,crimped
wire mesh machine,chain link fence machine etc.so you will save the cost(time cost,freight cost,risk cost,
service cost) when you buy it form us.
Nude packaging or Plastic bubble film packaging or Regard as your requirements
