Home /Products/Fabric Weaving Machine/For Yongjin Elastic and Non-elastic High Speed ​​Narrow Cloth Looms Shuttleless Weaving Machine Sets

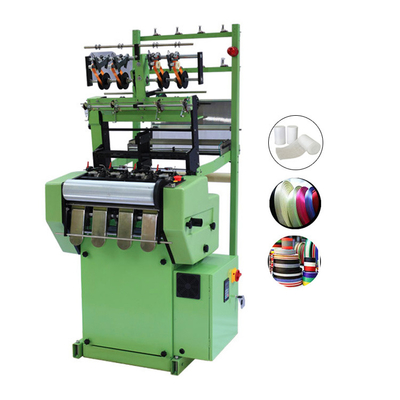

For Yongjin Elastic and Non-elastic High Speed ​​Narrow Cloth Looms Shuttleless Weaving Machine Sets

1.0 Sets
MOQ
For Yongjin Elastic and Non-elastic High Speed ​​Narrow Cloth Looms Shuttleless Weaving Machine Sets
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Manufacturing Plant, Textile Industry
Showroom Location: Turkey, Viet Nam, Indonesia, Thailand, Bangladesh
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Motor
Condition: New
Type: Shuttleless Loom
Application: For Elastic And Non-elastic, Elastic Non-elastic Webbing Manufacturer
Production Capacity: 300sets / Month
Dimension(L*W*H): 1.5m*0.98m*2.6m
Weight: 850KG
Power: 2.2KW, 380V/220V
Warranty: 12 Months, 12 Months
Key Selling Points: Automatic
Export Markets: Southeast Asia, The Middle East, Europe And America
Reed Width: 27mm
Speed: Designed Maximum 1200 RPM
Number Of Hooks: 192A-240A
Size: 1.5m*0.98m*2.6m
Commodity Name: High Speed Needle Loom
Spare Parts: Available To Sale
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Turkey, Thailand
Certification: ISO9001 CE
Basic Infomation
Certification: ISO9001 CE
Payment & Shipping Terms
Packaging Details: each loom : Bubble pack + wellpappe + stretch films+ wood case
Supply Ability: 300 Set/Sets per Month
Product Description
* The world's top 500 appointed manufacturer, specializes in needle loom for more than 20 years.
Product Description
This is the shuttleless loom, this machine is to produce elastic belts, etc., the structure is the same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of the machine, in order to improve the speed, to compare with another brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg
Product Paramenters
Model
2/110
4/65
6/50
8/30
12/15
8/30-2
12/18-2
Length of frame
550MM
Number of tapes
2
4
6
8
12
16
24
Width of reed
110
65
50
30
15
30
18
Maximum of tapes
100
63
48
28
13
28
16
Number of frame
16
16
16
16
16
16
16
Power/Voltage
1.1KW/380V
Circulation
1:8/16-48
Speed
800-1500rpm
Main Features
1.It is small in size and good-looking in appearance.
2. The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause any useless tapes.
3. The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shapes and different kinds of tapes.
4. It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon.
5.The advanced automatic weft feeding device ensures fine-tuning of weft feeding when non-stop of the machine.
6. The cam is characterized by its novel profile, no making too much noise and its high-quality lock and.
7. The number of lines of strips can be changed quickly and efficiently. Motor power is 1.1KW
8. The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically.
Related Products
Company Profile
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with our own trading department.

Q2:Where is your factory?
A2:Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our
factory.

Q3:How does your factory do regarding quality control?
A3:Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international
quality system certification.

Q4:How does your service oversea?
A4:We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the
machine for 1 year.And engineers will provide technical support.

Q5:Can you make some change for me for my own design?
A5:Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6:How long is the warranty period?
A6:12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
